CHONGQING JIDA MOTORCYCLE CO.,LIMITED.
7 Years
| Ask Lasest Price | |
| Brand Name : | OEM OR JIDA |
| Model Number : | JD150S-27 |
| Certification : | NA |
| Price : | USD 350-400/Unit |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 2000 UNITS PER MONTH |
| Delivery Time : | 30 Business Days After The Deposit |

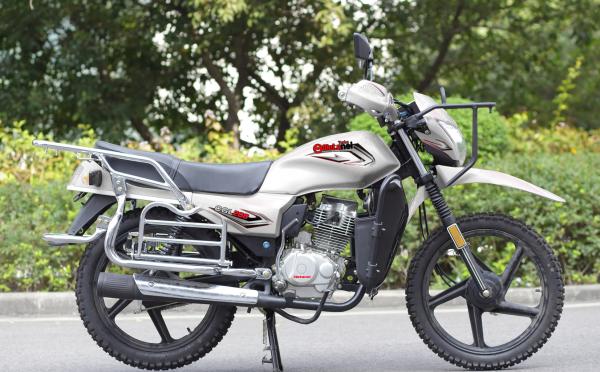

Five sheep cross - country motorcycle foot electric start
product specification
| Engine Type | Single cylinder,wind-cooled, four stroke, |
| Displacement(ml): | 149.4 |
| Bore X Stroke (mm): | 62×49.5 |
| Compression Ratio | 9.2:1 |
| Max. Power (kw/r/min) | 8.2(1±10%)/8000(1±5%) |
| Max. Torque (N.m/r/min): | 10(1±10%)/7500(1±5%) |
| Max. Speed (Km/h): | ≥90 |
| Lubrication | Pressure ,splash |
| Clutch Type | Multiplate wet clutch, Manual |
| Ignition | CDI |
| Starting System | E-start |
| Transmission System | Chain drive |
| The left and right steering angle | 45º44º |
| CHASSIS | |
| Front Brake | Drum brake |
| Rear Brake | Drum brake |
| Front Tire | 2.75-18 |
| Rear Tire | 3.00-18 |
| Battery | 12V/7Ah |
| DIMENSIONS | |
| L X W X H (mm | 2090*750*1110 |
| Seat Height(mm): | 750 |
| Wheelbase (mm): | 1335 |
| Min. Ground Clearance(mm): | 165 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity | 1 Person |
| Dry. Weigth | 115 |
| Engine Oil | 1L |
| Fuel Tank Capacity (L): | 12L |
| Roll angle | 11º |
| Packing Size (mm): | 1780×460×880 |
Warranty Parts:Engine;Frame;Shock Absorber,Rear Fork;Wheel Rim,etc.
JIDA SERVICE
A- We Can Offer One year warranty.
For some Main parts of bikes such as Engine,Frame,Shock Absorber,Rear Fork,Wheel Rim,one year warranty is avaliable except the artificial damage.
B-Sample order available.
For Motorcycle parts and engines, sample order is acceptable but
you need to take the cost of shipping.
For Motorcycles,you can come to our factory to check the quality of
the bike ,and the MOQ should be the
QTY that can just put in one 20GP container(usually it is 30 units
-40 units)
C- We can design as you requested about the Engine Logo ,Stickers,logos on the parts ,packings ,etc.
D- You can call us or write to us 7*24H .
FAQ
Q1. Are you a manufacturer or tradting company?
A1: We are factory produce motorcycles and parts for more than 9 years,we can produce more than 3000 units bikes every month,and a very large number of parts ,we have a good quality control system and fast after-sell service.
Q2. Could I get one sample ?
A2: For parts yes ,we can send you the some part for free and you need to take the cost of shipping .
Q3. What are your terms of payment?
A3: T/T,L/C,D/P,D/A,O/A is accetable depend on your order .
Q4: What is your terms of price?
A4: Usually we make FOB terms ,but we also accept CFR,CIF and other terms of price.
Q5: Which port does the container ship from ?
A5: Mostly it goes from Chongqing Port ,but some times we send to Shanghai and other port ,too .
Q6. How many colors can i order ?
A6: For motorcycles ,we accept 2 colors in one 20gp container and 4 colors in one 40HC container.
|
|
